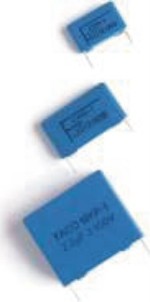

Faco METALLIZED POLYPROP’ MKP1 series (200-250VAC) ...............
Mkp-1 Series ( MKP-1 Series (approval test - IEC384-16 / IEC68) FACO
European quality, pulse application, deflection circuits
in TV, electronics ballast, timing, oscillators, etc.
pdf

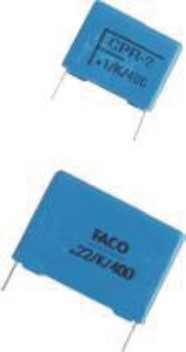

Faco METALLIZED POLYPROP’ MKP2 series (200-220VAC) ...............
MKP-2 Series (approval test - IEC384-16 / IEC68) FACO
European quality, pulse application, deflection circuits in TV, electronics ballast, snubber, SCR commutating circuits, applications high current.

pdf
Faco MP3 series .......................................................................................

Application : Used in electronic lighting (i. e. car headlamp
and ballast).

Construction:

Polypropylene film & Double sided metallized polyester film.
Lead wire: Tinned clad copper wire.
Outer coating : Plastic case (UL- 94V- 0 Standard)

Electrical characteristics

Rated Voltage (VR ): 300VAC ( 800VDC) , 400VAC (1000VDC),
500VAC (1200VDC) , 700VAC (1600VDC) , 900VAC (2000VDC).
Capacitance tolerance: 5%, 10% and 20%.
Capacitance range: 1nF to 100nF
pdf
Faco MP5 series .......................................................................................

Application:
Used in electronic lighting, car hedlamp and ballast,
pulse applications.

Construction:

Dielectric Polypropylene film or/and film-foil.
Tinned wire
Plastic case, epoxy resin filled, UL94 V0

Electrical Characteristics:

Capacitance range: 1 nF to 0.1 μF
Capacitance tolerance: ± 3 % (H), ± 5 % (J), ± 10 % (K) .
Rated voltage (Vr): 300 Vac (800 Vdc), 400 Vac (1000 Vdc),
500 Vac (1250 Vdc), 700 Vac (1600 Vac),900 Vac (2000 Vdc).
  pdf
Faco MPB series ......................................................................................

Application:
Used in electronic equipment.

Construccion:

Dielectric Polypropylene film l.
Tinned wire
Plastic case, epoxy resin filled, UL94 V0

Electrical Characteristics:

Capacitance range: 10 nF to 6.8 uF
Rated voltage (Vr): 250, 400, 630, Vdc
